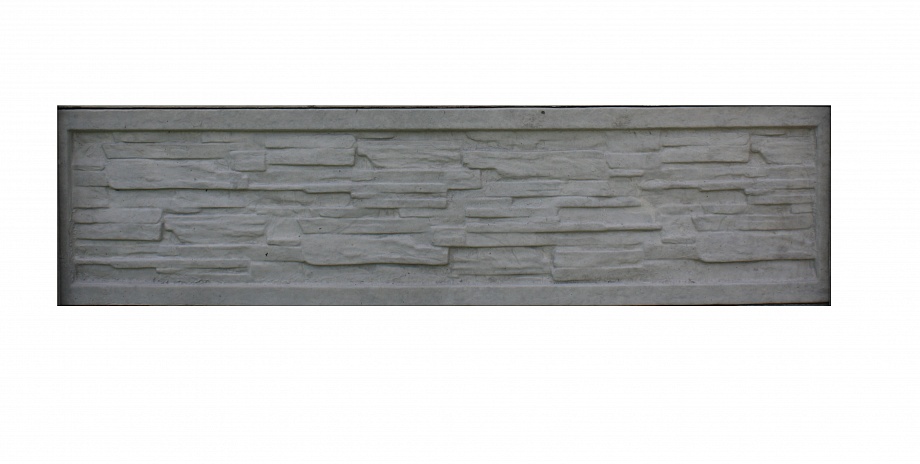

Panel fencing deaf "Slate"

The catalog contains selling prices of the manufacturer!

Size 2000x500x70

Reinforced concrete fences are designed for the fencing of residential buildings, social and cultural facilities, industrial areas. The choice of height and architectural type of fencing is determined by the conditions of construction, operation and technical and economic indicators. Refined fence for the house can be the pride of the owner. This fence or fence - this is the first step towards the arrangement of your home.

The concrete mix prepared in a special mixer has high mobility, non-stratification, good molding properties, and concrete products are distinguished by high indicators of strength, water resistance, frost resistance.

For the manufacture of concrete fences are used:

  • Portland cement M500D0 (without additives);
  • sand with a modulus of fineness more than Mcr 2.0 (the ideal option is a fraction of 2.5), the content of clay particles in the sand is not more than 3%;
  • crushed granite brand more than 800, fraction 5-10 mm;
  • plasticizers;
  • water; Armature: for the frame - steel BP-1, diameter from 4mm, for posts: 0.5m - B-1 4mm, 1m - BP-1 4mm, 1.5m - 6mm, 2.0m - 8mm, 2.5m - A3 10mm

    Capital high fence can be built of concrete. It will cost less than a brick, and its device will take much less time. The reliability of the structure will be the same, while the concrete fence allows you to implement a lot of design solutions close to the elite fences. If you associate such a structure with old, gray, dilapidated fences, then you are mistaken - modern technologies have allowed us to create concrete fences of different textures and patterns. For this purpose, a sectional method is used, with which decorative horizontal panels are cast.

    Characteristics of concrete fences

    Modern concrete fence is assembled from sections cast by vibratory casting, which eliminates the presence of air bubbles that contribute to the destruction. The rigidity of the panels is enhanced by ribs of steel reinforcement. Outside, they are given a variety of patterns and textures. This effect is achieved by the use of decorative forms, the surface of which is not smooth, but has well thought-out grooves, convex and concave sections that form a certain appearance of the panel.

    Another attractive feature is the painting of a concrete fence, already built on the site or immediately after the hardening of the form. To do this, use facade paints for concrete that can withstand weather factors and are durable. Also paint can be added to the concrete at the mixing stage, which further simplifies the work. The disadvantage of this method is the overrun of the pigment, since in the first case only the surface is painted, and in the second - the entire volume of concrete.

    Concrete fence conditions

    The fence is installed on a tape-column or column foundation. In the first case, it rests on the base, in the second - it reaches the ground. It should be noted that the sectional concrete fence can not be fixed to the usual supports. For him prepare the reinforced concrete pillars with grooves, for which also use special forms. The height of the fence can be any, as it is assembled from blocks by the method of building. This provides a simplified installation and the ability to create any patterns, including through elements.

    Options for such design, there are many, because on sale there are many different forms for concrete fences. The advantages of the sectional fence are in the ease of manufacture and low weight of the elements (no more than 70 kg). This allows you to build it with one or two assistants.
